IAE 5 Bar Half Mesh Galvanised Gates
As low as
£101.02
£84.18
Related Products
(Check box to add to basket also)
Check items to add to the cart or
Overview
Description

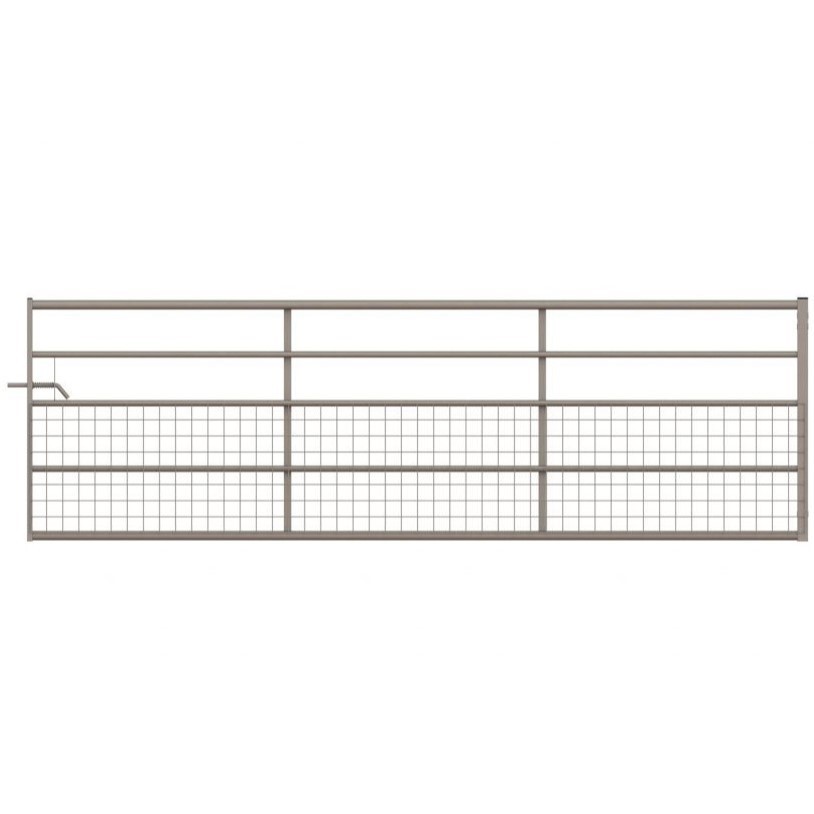

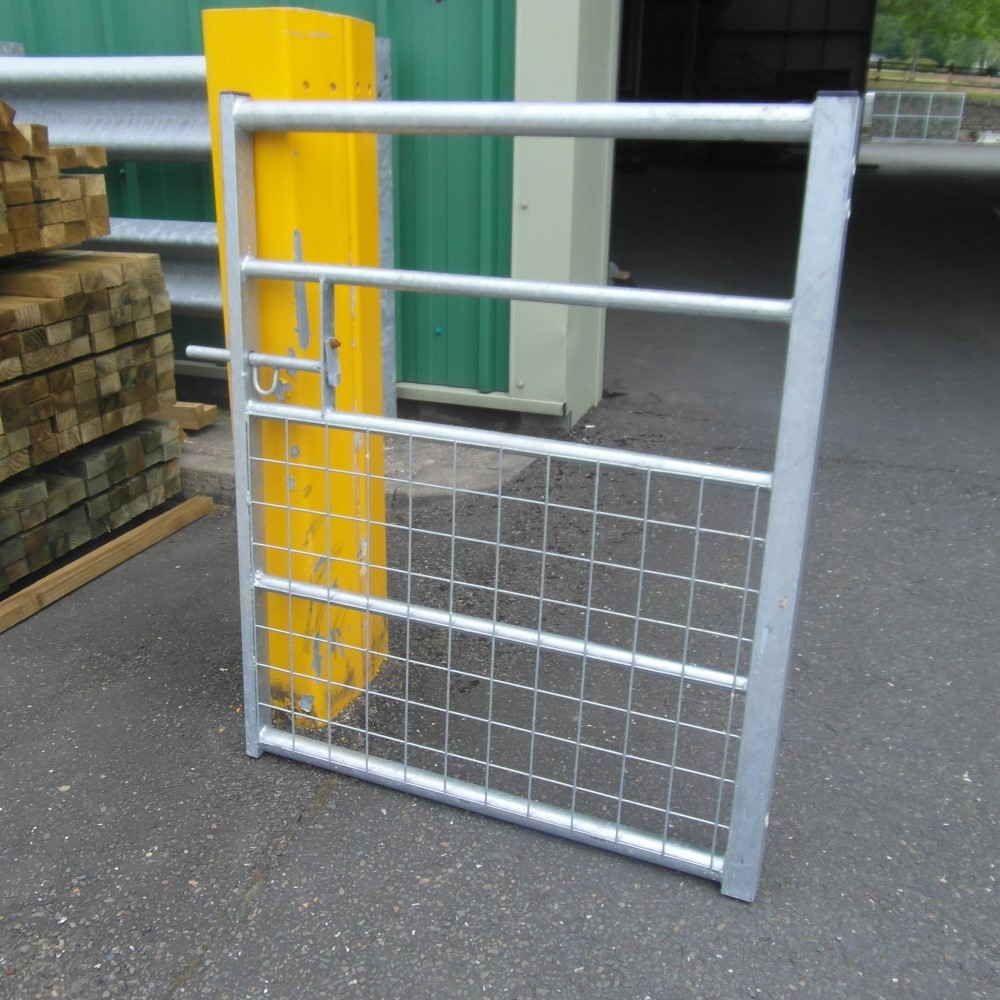

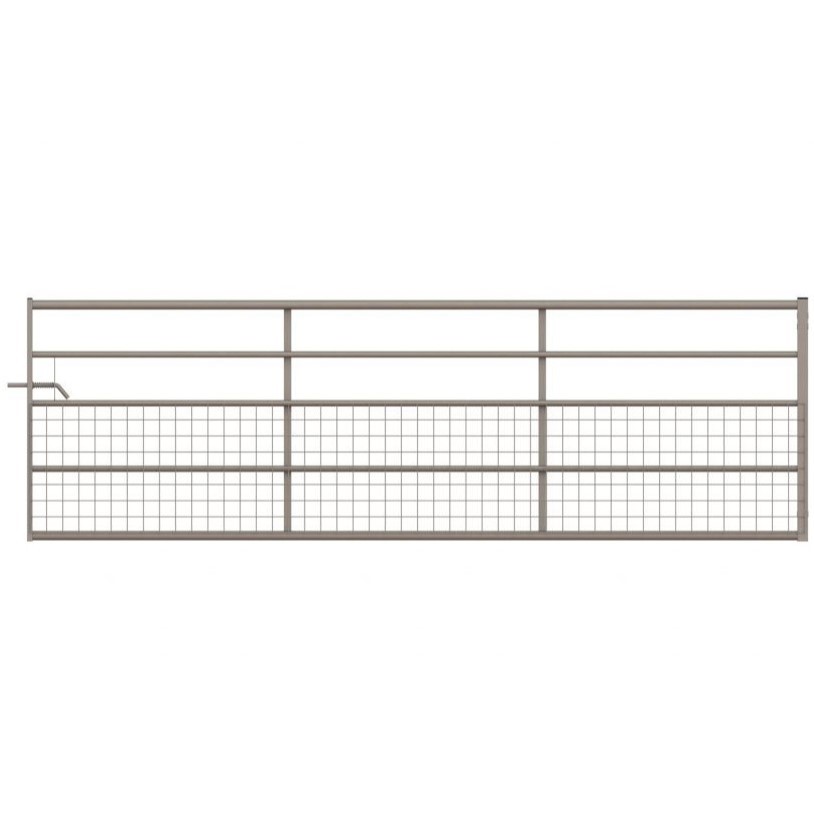

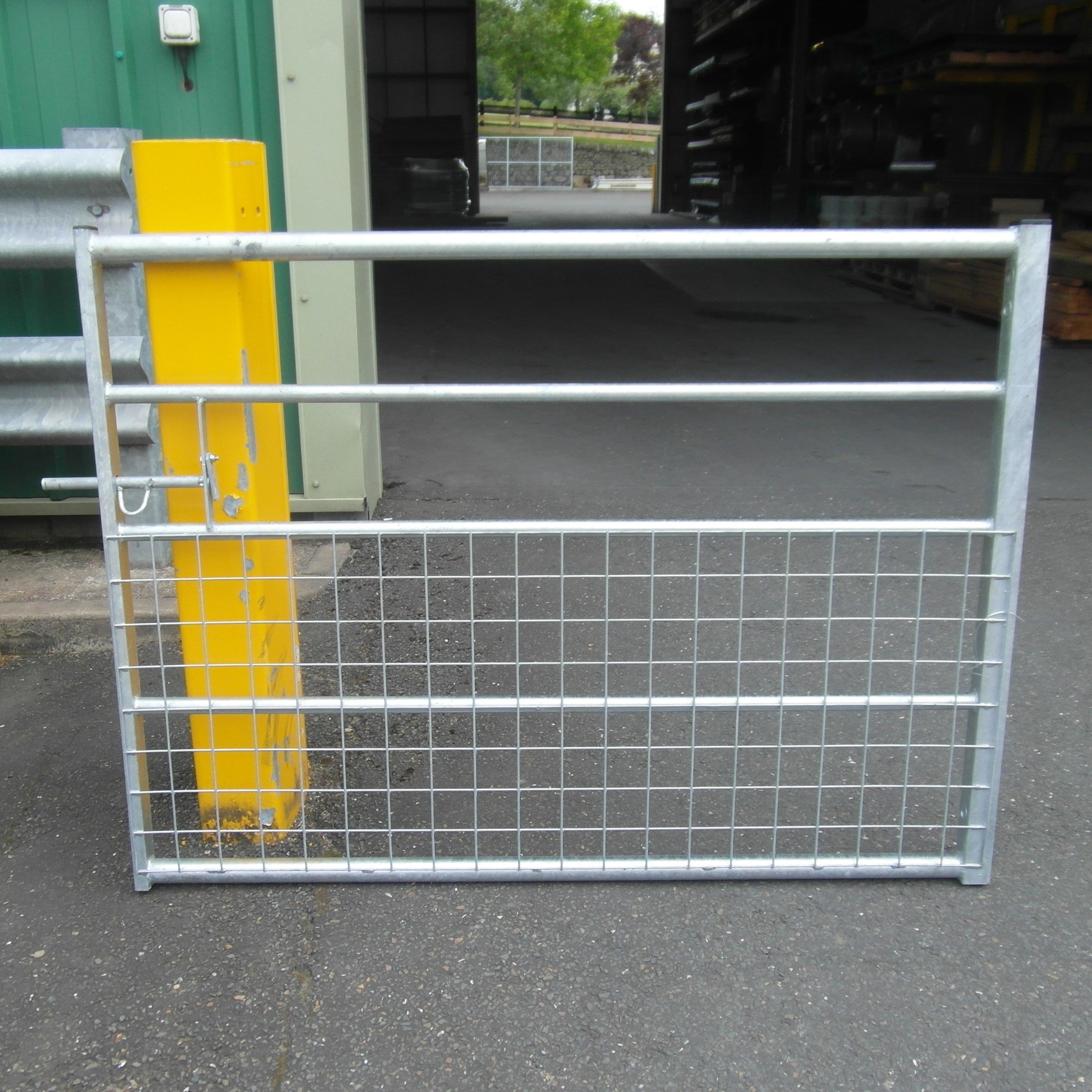

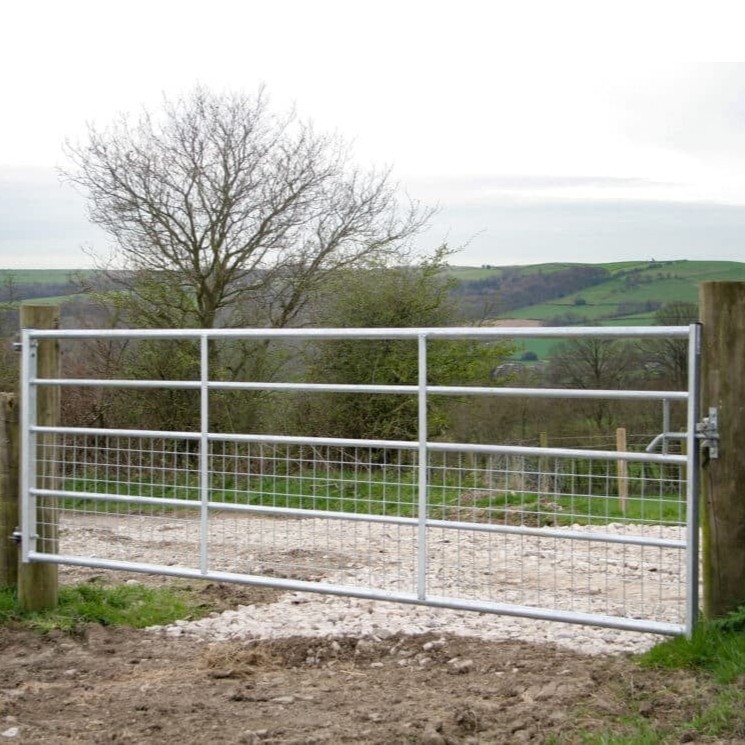

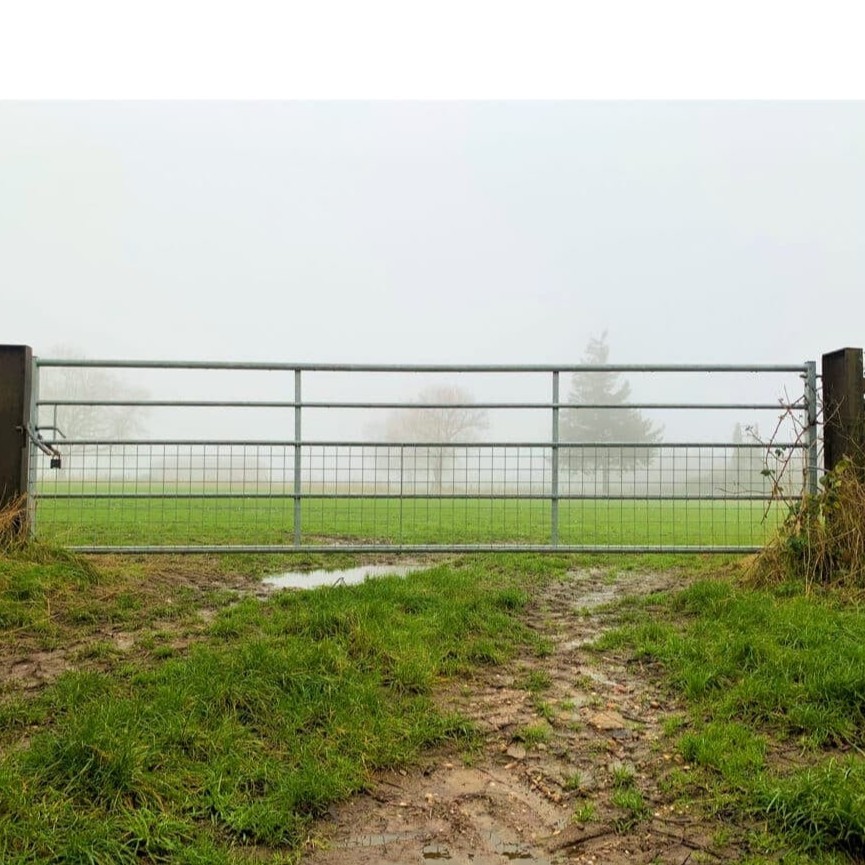

The IAE 5 Rail Half Meshed Gate is ideally suited for containing small animals and young stock. It has a sleeved box section hanging stile and comes with a spring loaded slide bolt and two gate eyes. It is available in widths from 3ft to 16ft with all gates clad in 75mm x 75mm weldmesh.
* Please note that only one side of the gate is clad with weldmesh and all the gates are clad on the same side. If looking to use these gates as double gates please contact our office to request a left and a right hang gate *
Details
- 44.5mm o/d top and bottom rails
- 30mm o/d intermediates
- Clad with 75mm x 75mm weldmesh
- 1142mm high c/w spring loaded slide bolt
- Please Note: All Gates are right hand hang, meaning when the mesh is on the front the hinges are on the right
Products
| SKU | Length | Approx Weight |
| 3HM | 3ft (915mm) | 14.33KG |
| 4HM | 4ft (1220mm) | 16.67KG |
| 5HM | 5ft (1525mm) | 19.03KG |
| 6HM | 6ft (1830mm) | 22.39KG |
| 7HM | 7ft (2135mm) | 24.76KG |
| 8HM | 8ft (2440mm) | 27.07KG |
| 9HM | 9ft (2745mm) | 29.45KG |
| 10HM | 10ft (3050mm) | 31.79KG |
| 11HM | 11ft (3355mm) | 34.12KG |
| 12HM | 12ft (3660mm) | 37.74KG |
| 13HM | 13ft (3965mm) | 40.07KG |
| 14HM | 14ft (4270mm) | 42.45KG |
| 15HM | 15ft (4575mm) | 44.79KG |
| 16HM | 116ft (4880mm) | 47.13KG |
